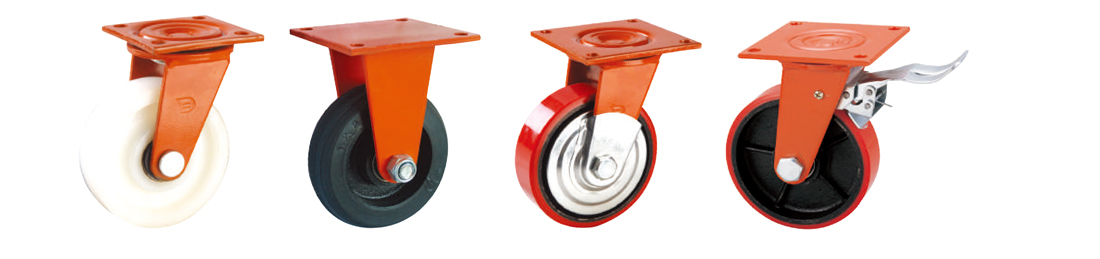

C型系列
C Type Caster (Japanese Style)
高負載且轉動靈活,普遍適用於一般工廠搬運,另可附防纏絲及防塵蓋,屬得貹專利產品,可以有效防止腳輪因灰塵或纏絲而無法轉動,提高腳輪使用壽命。
Swivel easily under heavy load, for workshop carts. Patented thread guards prevent swivel failute caused by build-up of strings between the wheel and fork legs, as well as the dust in the wheel bearing.
工業輪,重型,五金台車,車輪

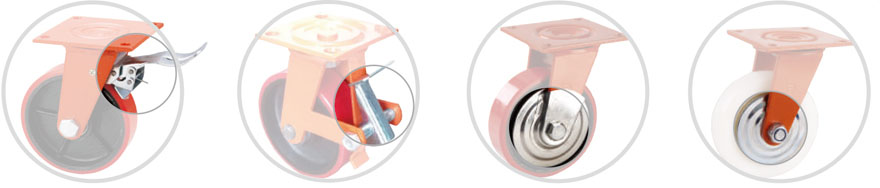

BCD煞(中煞)
Swivel W/Center
Lock Break
K煞
Swivel W/Center
Lock (K type)
輪子可附防纏絲蓋
Thread guard specially
for textile industry
輪子可附防塵蓋
Thread guard

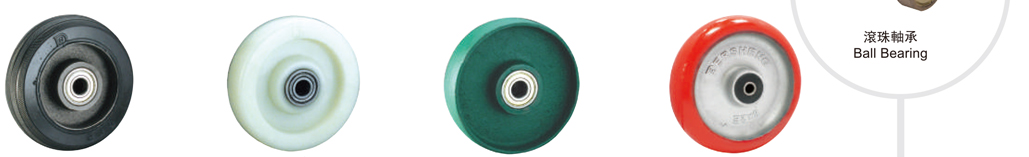

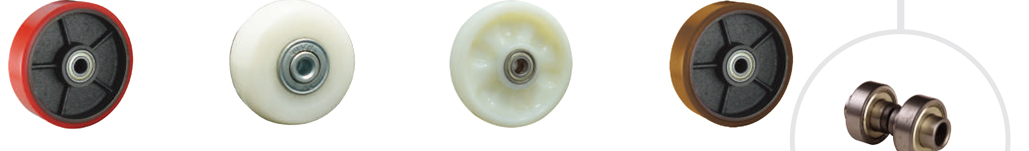

鐵芯聚氨酯
PU on Cast
CPD輪
CPD
WMRC輪
WMRC
QPU輪
QPU
三星輪
Rubber on Cast
尼龍輪
Nylon
銑輪
Cast Iron
EPU輪
EPU


腳輪尺寸
Caster Size
底板尺寸
Top Plate Size
底板孔距
Bolt Hole Spacing
安裝尼帽尺寸
Attaching Bolt Size
4"C型架
4"Caster
100 x 115 mm (3-15/16"x 4-1/2") 75 x 75 mm (3"x 3") 10 mm(3/8")
5"C型架
5"Caster
100 x 115 mm (3-15/16"x 4-1/2") 75 x 75 mm (3"x 3") 10 mm(3/8")
6"C型架
6"Caster
125 x 125 mm (4-15/16"x 4-15/16") 105 x 105 mm (4-1/8"x 4-1/8") 10 mm(3/8")
8"C型架
8"Caster
125 x 125 mm (4-15/16"x 4-15/16") 105 x 105 mm (4-1/8"x 4-1/8") 10 mm(3/8")
10",12"C型架
10",12"Caster
160 x 160 mm (6-5/16"x 6-5/16") 130 x 130 mm (5-1/8"x 5-1/8") M12
固定
Fixed
活動
Swivel
煞車
Brake
100mm x 34mm
(4" x 1-3/8")
250 kgs (550 lbs) QPU輪
QPU
1103-04-80-1 1103-04-80-2 1103-04-80-4 滾珠
Ball Bearing
145mm
(5-11/16")
活動 75mm
K煞 75mm
BCD煞 105mm

Swivel 75mm

Swivel W/Center
lock(K type)75mm

Swivel W/Center
lock 105mm
100mm x 38mm
(4" x 1-1/2")
200 kgs (440 lbs) 鐵芯聚氨酯
PU on Cast
1103-04-33-1 1103-04-33-2 1103-04-33-4
200 kgs (440 lbs) 三星輪
Rubber on Cast
1103-04-03-1 1103-04-03-2 1103-04-03-4
200 kgs (440 lbs) CPD輪
CPD
1103-04-49-1 1103-04-49-2 1103-04-49-4
250 kgs (550 lbs) 尼龍輪
Nylon
1103-04-07-1 1103-04-07-2 1103-04-07-4
250 kgs (550 lbs) 銑輪
Cast Iron
1103-04-14-1 1103-04-14-2 1103-04-14-4
125mm x 40mm
(5" x 1-9/16")
300 kgs (660 lbs) QPU輪
QPU
1103-05-80-1 1103-05-80-2 1103-05-80-4 滾珠
Ball Bearing
168.5mm
(6-5/8")
活動 91mm
K煞 91mm
BCD煞 106mm

Swivel 91mm

Swivel W/Center
lock(K type)91mm

Swivel W/Center
lock 106mm
300 kgs (660 lbs) EPU輪
EPU
1103-05-78-1 1103-05-78-2 1103-05-78-4
125mm x 42mm
(5" x 1-5/8")
250 kgs (550 lbs) 鐵芯聚氨酯
PU on Cast
1103-05-33-1 1103-05-33-2 1103-05-33-4
220 kgs (485 lbs) 三星輪
Rubber on Cast
1103-05-03-1 1103-05-03-2 1103-05-03-4
250 kgs (550 lbs) CPD輪
CPD
1103-05-49-1 1103-05-49-2 1103-05-49-4
300 kgs (660 lbs) 尼龍輪
Nylon
1103-05-07-1 1103-05-07-2 1103-05-07-4
300 kgs (660 lbs) 銑輪
Cast Iron
1103-05-14-1 1103-05-14-2 1103-05-14-4
150mm x 42mm
(6" x 1-5/8")
350 kgs (770 lbs) QPU輪
QPU
1103-06-80-1 1103-06-80-2 1103-06-80-4 滾珠
Ball Bearing
197mm
(7-3/4")
活動 106mm
K煞 106mm
BCD煞 166mm

Swivel 106mm
Swivel W/Center

lock(K type)106mm

Swivel W/Center
lock 166mm
350 kgs (770 lbs) EPU輪
EPU
1103-06-78-1 1103-06-78-2 1103-06-78-4
150mm x 48mm
(6" x 1-7/8")
300 kgs (660 lbs) 鐵芯聚氨酯
PU on Cast
1103-06-33-1 1103-06-33-2 1103-06-33-4
260 kgs (570 lbs) 三星輪
Rubber on Cast
1103-06-03-1 1103-06-03-2 1103-06-03-4
300 kgs (660 lbs) CPD輪
CPD
1103-06-49-1 1103-06-49-2 1103-06-49-4
350 kgs (770 lbs) 尼龍輪
Nylon
1103-06-07-1 1103-06-07-2 1103-06-07-4
350 kgs (770 lbs) 銑輪
Cast Iron
1103-06-14-1 1103-06-14-2 1103-06-14-4
350 kgs (770 lbs) WMRC輪
WMRC
1103-06-45-1 1103-06-45-2 1103-06-45-4


固定
Fixed
活動
Swivel
煞車
Brake
200mm x 45mm
(8" x 1-6/8")
400 kgs (880 lbs) QPU輪
QPU
1103-08-80-1 1103-08-80-2 1103-08-80-4 滾珠
Ball Bearing
244mm
(9-5/8")
活動 147mm
K煞 147mm
BCD煞 168mm
Swivel 147mm

Swivel W/Center
lock(K type)147mm

Swivel W/Center
lock 168mm
200mm x 48mm
(8" x 1-7/8")
350 kgs (770 lbs) 鐵芯聚氨酯
PU on Cast
1103-08-33-1 1103-08-33-2 1103-08-33-4
300 kgs (660 lbs) 三星輪
Rubber on Cast
1103-08-03-1 1103-08-03-2 1103-08-03-4
350 kgs (770 lbs) CPD輪
CPD
1103-08-49-1 1103-08-49-2 1103-08-49-4
400 kgs (880 lbs) 尼龍輪
Nylon
1103-08-07-1 1103-08-07-2 1103-08-07-4
400 kgs (880 lbs) 銑輪
Cast Iron
1103-08-14-1 1103-08-14-2 1103-08-14-4
400 kgs (880 lbs) WMRC輪
WMRC
1103-08-45-1 1103-08-45-2 1103-08-45-4
200mm x 50mm
(8" x 2")
400 kgs (880 lbs) QPU輪
QPU
1103-08-80-1 1103-08-80-2 1103-08-80-4
400 kgs (880 lbs) EPU輪
EPU
1103-08-78-1 1103-08-78-2 1103-08-78-4
254mm x 50mm
(10" x 2")
450 kgs (990 lbs) 尼龍輪
Nylon
1103-10-07-1 1103-10-07-2 滾珠
Ball Bearing
320mm
(12-5/8")
活動 181mm
Swivel 181mm
254mm x 62mm
(10" x 2-7/16")
450 kgs (990 lbs) 鐵芯聚氨脂
PU on Cast
1103-10-33-1 1103-10-33-2
450 kgs (990 lbs) QPU輪
QPU
1103-10-80-1 1103-10-80-2
300mm x 70mm
(12" x 2-3/4")
500 kgs (1100 lbs) 鐵芯聚氨脂
PU on Cast
1103-12-33-1 1103-12-33-2 滾珠
Ball Bearing
350mm
(13-3/4")
活動 221mm
Swivel 221mm
